Flight cases for plasma screen from 54" to 70" approximatively (old model)

Flight cases for plasma screen from 54" to 70" approximatively (old model)

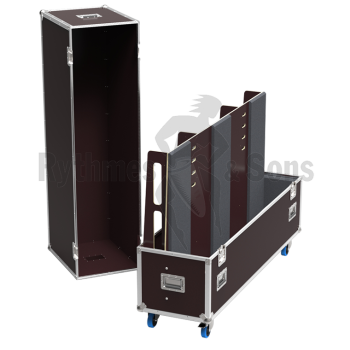

This new flight case is adjustable for every kind of screen. Its wedging system is adjustable in all directions, which allows it to accommodate screens of different sizes. Its modular design offers numerous advantages :
No need for a flight case dedicated to one specific screen
no need to change the flight case for a replacement screen
possible use in "box shuttle" for different kinds of screens.

Suitable to screens of size :

• Length : from 1300 mm mini to 1650 mm maxi
• Height : from 650 mm mini to 980 mm maxi
• Thickness : from 70 mm mini to 250 mm maxi

Product specifications and fittings

• Removable top lid
• 9 mm BROWN phenolic faced birch plywood
• 4 large recessed butterfly latches with guided opening/closing mechanism
• 8 recessed spring-loaded handles with double sprung
• 4 swivel castors Ø100 (2 with brake)

Interior features

• Foam padding at the bottom
• Blocking system with straps and foam
• Compartment for the storage of accessories width 170mm (stands / speakers / wall support)
