800x600xH800 Flight-case OpenRoad® avec bacs et etagère a-4
Vignette
800x600xH800 Flight-case OpenRoad® avec bacs et etagère a-1
800x600xH800 Flight-case OpenRoad® avec bacs et etagère a-2
800x600xH800 Flight-case OpenRoad® avec bacs et etagère a-3
Poignée encastré en acier avec double ressort de rappel
4 roulettes pivotantes D100 dont 2 à frein
4 roulettes pivotantes D100 dont 2 à frein
Poignée encastré en acier avec double ressort de rappel
4 roulettes pivotantes D100 dont 2 à frein

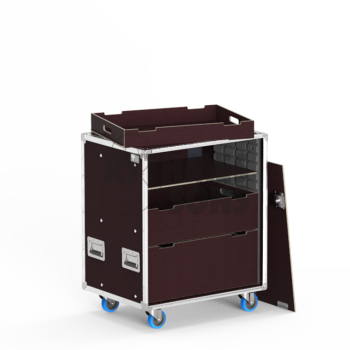

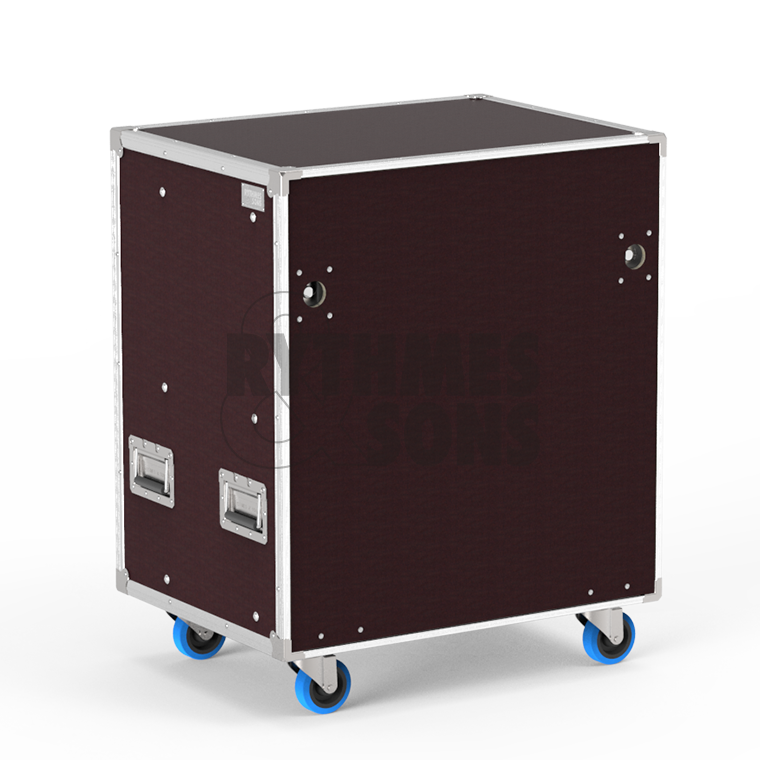

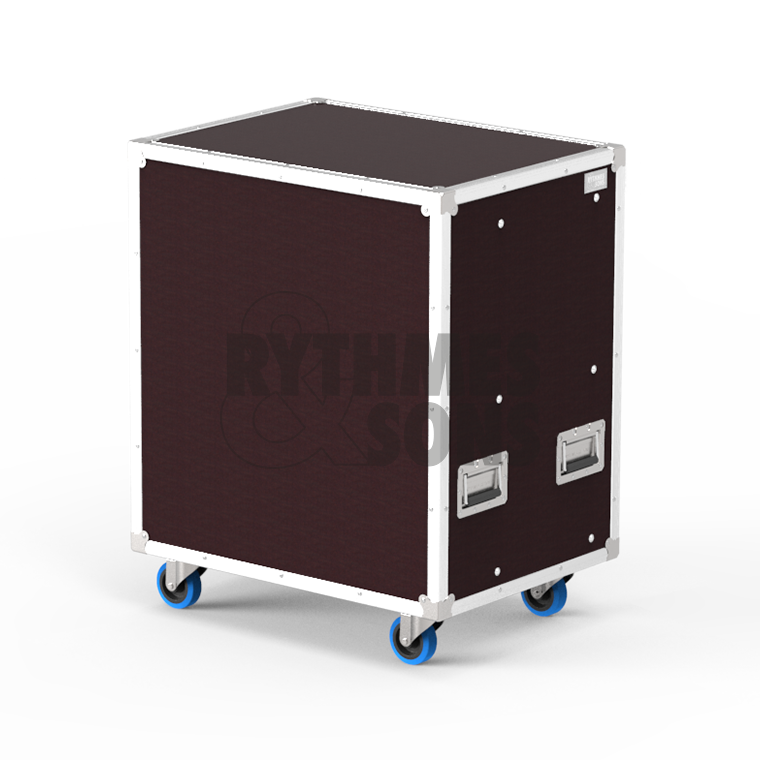

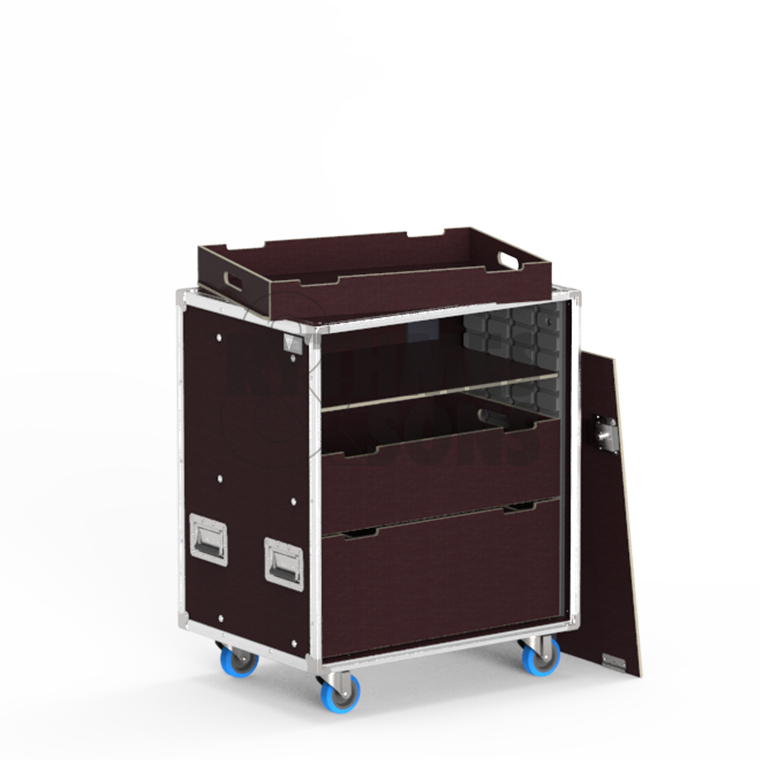

OpenRoad® Tray Rack with storage space 800x600xH800mm with trays and shelves removable

Ref. ORB 0806-08-A1

Similar references :

See details

Benefits

  • Truck-friendly format, dimensions compatible with standard truck loading
  • Maximum modularity, grooved sides every 5 cm allowing flexible and scalable installation of removable bins or shelves
  • Space-saving, flat and removable OpenRoad® lid
  • Robustness, birch plywood with brown phenolic coating
  • Easy and quick opening/closing, OpenRoad® sliding latches
  • Easy handling, ergonomic handles
  • French manufacturing, designed and manufactured in Alsace (France) by Rythmes & Sons

6 in stock

Manufacture in progress

1 242.24€ Incl. VAT

Public price

Log in to check your price




Loading...




Technical specifications

Product reference

ORB 0806-08-A1

Gross weight (kg)

66.58

Overall dimensions with wheels (mm)

800x800xH990

Interior dimensions (mm)

520x730xH800

Useful height (mm)

800

Type of Opening

OpenRoad® removable flat lid at the front

Material

9 mm birch plywood

Finishing

Phenolic coated

Color

Brown

Type of Latches

Recessed sliding latches

Nomber of Latche(s)

2

Type of Handle

Steel Recessed flip handle(s) with double sprung

Nomber of Handle(s)

4

Castors

4 swivel castors Ø100 (2 with brake)

Interior features

Grooving (every 50 mm) on the sides for trays and removable shelves, 1 removable tray dim. 700x500xH285mm internal + removable dividers kit, 1 removable tray dim. 700x500xH185mm internal, 1 removable tray dim. 700x500xH85mm internal, 1 shelf, Lock with keys (2 locks required per rack)

OpenRoad® Tray Rack with storage space 800x600xH800mm with trays and shelves removable

Product specifications and fittings

  • 9 mm BROWN phenolic faced birch plywood
  • OpenRoad® removable flat lid at the front
  • 2 recessed sliding latches
  • 4 recessed spring-loaded handles with double sprung on the sides
  • 4 swivel castors Ø100 (2 with brake)

Interior features

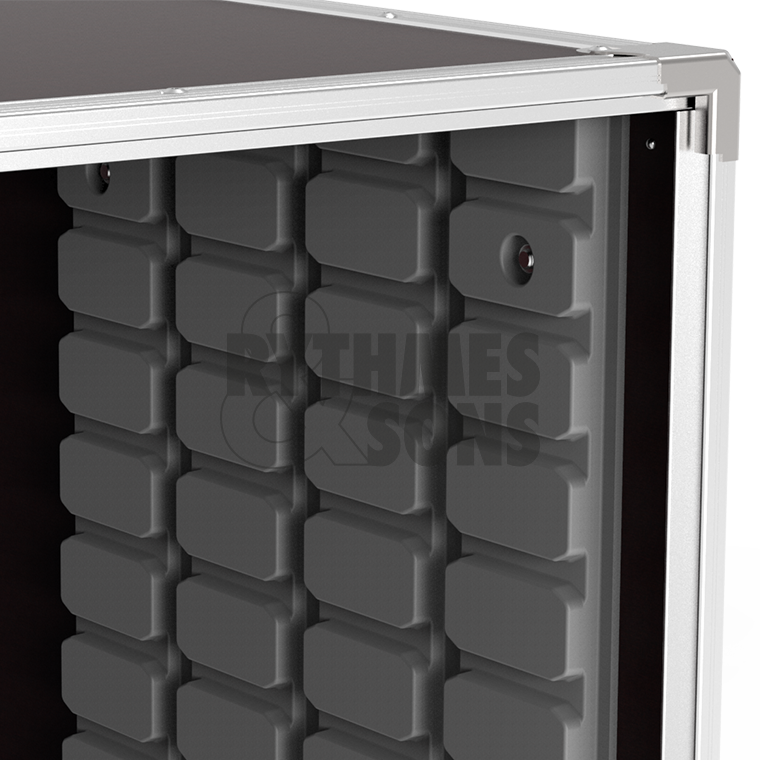

  • Grooving (every 50 mm) on the sides for trays and removable shelves
  • 1 removable tray dim. 700x500xH285mm internal + removable dividers kit
  • 1 removable tray dim. 700x500xH185mm internal
  • 1 removable tray dim. 700x500xH85mm internal
  • 1 shelf
  • Lock with keys (2 locks required per rack)

Developed and manufactured by Rythmes & Sons in France

Download PDF file


Your customized flight-case?

Your customized flight-case?

Ask for your free quote and receive your personalized offer.

Ask for a quote

Keywords : backstage, box, cabinet, case, event, exhibitions, industry, maid, medical, mopen road, motorsport, museums, open raod, open ria, open riad, open road, open roda, open rode, openb road, openr, openroaed, openrode, opera, pharmaceutical, plv, servant, theater, workshop

  PDF

Product sheet 800x600xH800 OpenRoad® Flight case with removable drawers and shelve
