Open Road® 19" mix-rack with castors 20u x14U (destockage)
Ref. 9FOR 013814
Similar references :
Loading...
Technical specifications
Product reference
9FOR 013814
Net weight (kg)
45.00
Overall dimensions with wheels (mm)
745x535xH1330
Type of Opening
Useful height (U)
20U
Depth (U)
Material
9 mm birch plywood
Finishing
Phenolic coated
Color
Brown
Type of Latches
Nomber of Latche(s)
6
Type of Handle
Nomber of Handle(s)
4
Castors
4 swivel castors Ø100 (2 with brake)
Rack strip rails
Interior features
Nuts + screws quantity
60
Packed brand
ALLEN & HEATH, ROLAND, SOUNDCRAFT, YAMAHA
Packaged product
01V96i, EMX 5014C, EMX 5016CF, LS9-16, M-200 V-MIXER, M-300 V-MIXER, MCP 12X, MCP 16X, MG16, MG166C, MG166XU, MG16XU, MG20, MG206C, MG20XU, O1V96, PA12-CP, QU-16, SI COMPACT 16, SI EXPRESSION 1, SI PERFORMER 1, SQ-5, WZ 12:2 POD REAR, WZ 14:4:2 POD REAR, WZ 16:2 POD REAR, WZ3 12M, WZ3 16:2 DX

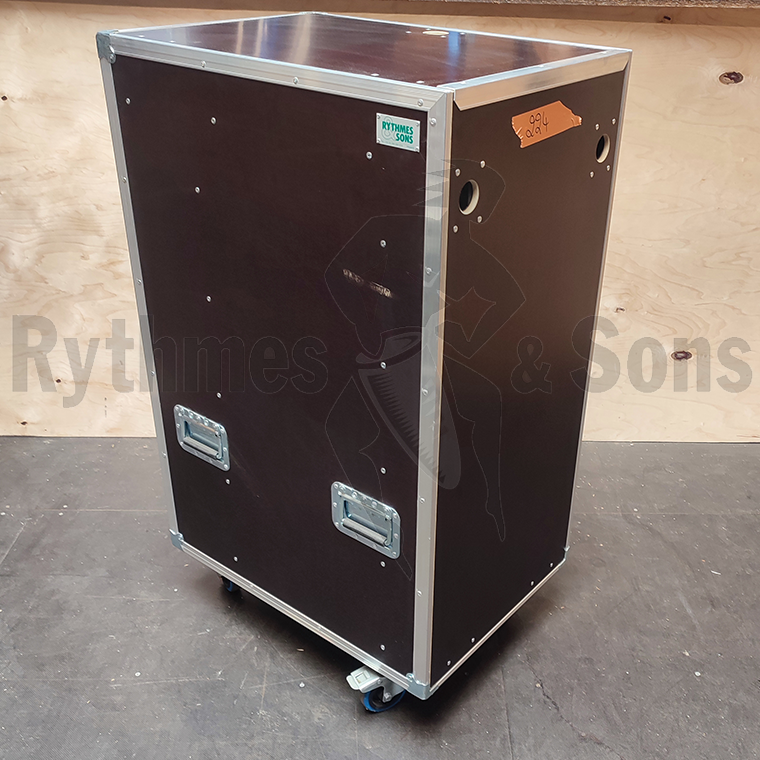

Open Road® 19" mix-rack with castors 20u x14U (destockage)
Product specifications and fittings
- 9 mm BROWN phenolic faced birch plywood
- Front and top OpenRoad® removable flat lids

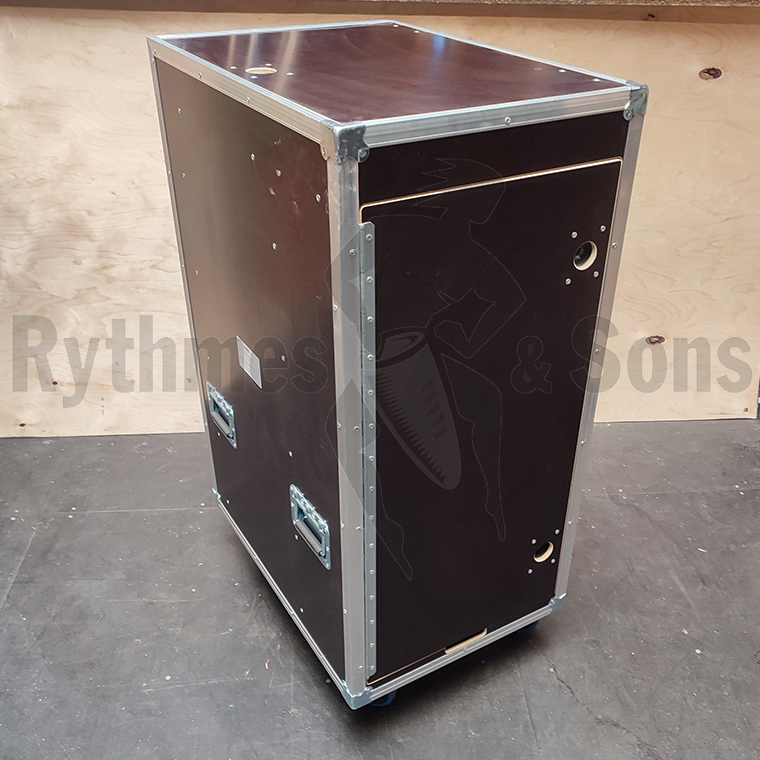

- Hinged back access door
- 6 recessed sliding latches
- 4 recessed spring-loaded handles with double sprung
- 4 swivel castors Ø100 (2 with brake)

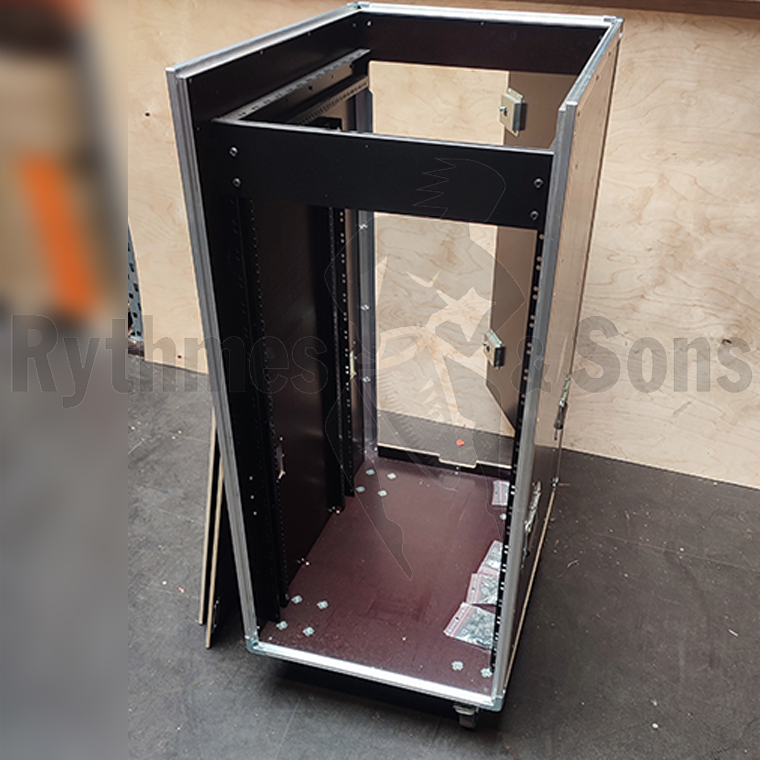

Interior features
- 20u Front and back 19" steel double rack strip rails
- 14U Top 19" steel double rack strip rails. Height under lid = 155mm
- 2 unit rack panel on the front (* Additional 2U (90mm) are reserved in the upper part for the thickness of the mixing console and closed by the front panel provided.)
Default
- Side stripes
Your customized flight-case?
Ask for your free quote and receive your personalized offer.
