Home / Flight cases / Racks, Control Desks & 19" Integration Solutions / 19" control racks

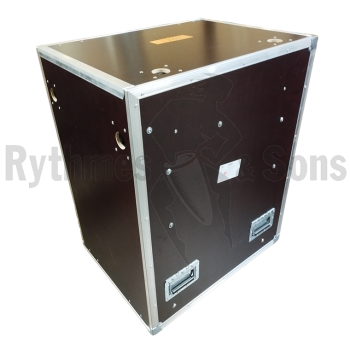

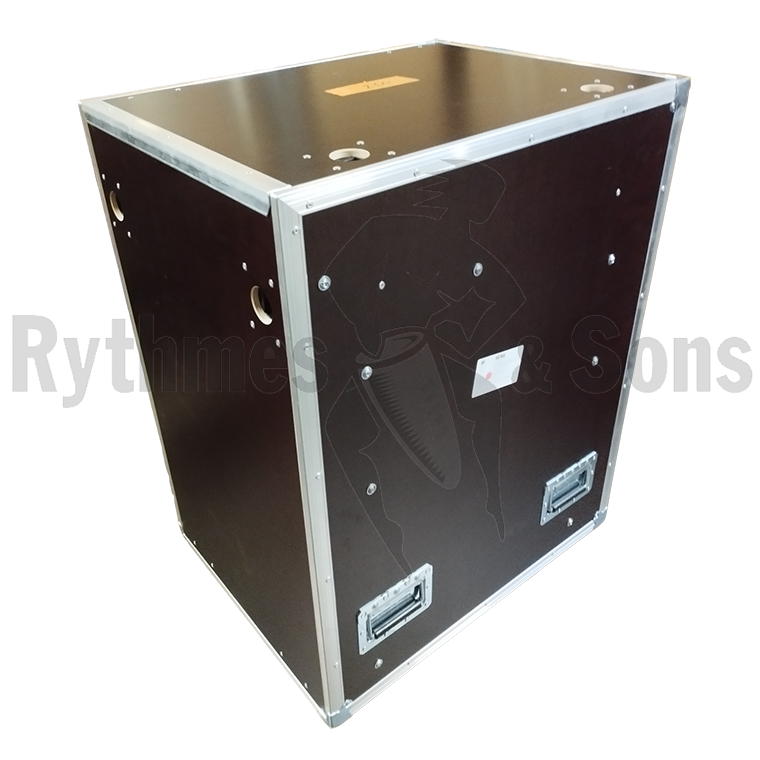

Flight-case - Régie de table 19' OpenRoad®
16Ux14U incl-1

Flight-case - Régie de table 19' OpenRoad®
16Ux14U incl-2

4 roulettes pivotantes D100 dont 2 à frein

Open Road^® 19" mix-rack with castors 16U x14U tilting

Ref. 9FOR 014034

Similar references :

See details

Benefits

19" tabletop control unit
Rapid deployment of a complete audio system
Easy and quick access thanks to flat, removable lids
Sturdy 9 mm birch plywood construction
Phenolic film coating, easy to clean
French manufacturing, designed and produced in Alsace (France) by Rythmes & Sons

Item unavailable,
contact us!

Technical specifications

Product reference

9FOR 014034

Net weight (kg)

48.00

Overall dimensions with wheels (mm)

760x580xH1095

Type of Opening

Useful height (U)

16U

Depth (U)

Material

9 mm birch plywood

Finishing

Phenolic coated

Color

Brown

Type of Latches

Nomber of Latche(s)

Type of Handle

Nomber of Handle(s)

Castors

4 swivel castors Ø100 (2 with brake)

Rack strip rails

Interior features

Nuts + screws quantity

Packed brand

ALLEN & HEATH, ROLAND, SOUNDCRAFT, YAMAHA

Packaged product

EMX 5014C, EMX 5016CF, LS9-⁠16, M-⁠200 V-⁠MIXER, M-⁠300 V-⁠MIXER, MCP 12X, MCP 16X, MG16, MG166C, MG166XU, MG16XU, MG20, MG206C, MG20XU, O1V96, PA12-⁠CP, QU-⁠16, SI COMPACT 16, SI EXPRESSION 1, SI PERFORMER 1, SQ-⁠5, WZ 12:2 POD REAR, WZ 14:4:2 POD REAR, WZ 16:2 POD REAR, WZ3 12M, WZ3 16:2 DX

Open Road^® 19" mix-rack with castors 16U x14U tilting

**Does not fit 01V96 or ONYX 1640I tables**

This unit holds small audio equipment with a 19" format. It will hold a mixing station on top and can accept readers, amps, and other 19" accessories.
It allows for quick setup of a complete audio system. It is ideal for setting up equipment for use.

Product specifications and fittings

9 mm BROWN phenolic faced birch plywood
Front and top OpenRoad^® removable flat lids
Hinged back access door
6 recessed sliding latches
4 recessed spring-loaded handles with double sprung
4 swivel castors Ø100 (2 with brake)

Interior features

Front and back steel double rack strip 16u
Top steel rack strip tilting 14U. Height under lid = 155mm
2 units rack panel on the front (* Additional 2U (90mm) are reserved in the upper part for the thickness of the mixing console and closed by the front panel provided.)

Developed and manufactured by Rythmes & Sons in France

*** WARNING, with some consoles the racking kit is optional ***

Download PDF file
