Technical specifications
Product reference
9FOR 014191
Net weight (kg)
15.00
Brand
Overall dimensions with wheels (mm)
630x535xH330
Useful height (U)
6U
Useful height (mm)
267
Useful depth (mm)
530
Type of Opening
Material
9 mm birch plywood
Finishing
Phenolic coated
Color
Brown
Type of Latches
Recessed sliding latches
Nomber of Latche(s)
2
Type of Handle
Steel Recessed flip handle(s) with double sprung
Nomber of Handle(s)
4
Tour Label dish
Feet
Dish for stacking
No
Stackable
Rack strip rails
Shock mounted
No
Interior features
Nuts + screws quantity
24
Castors
Max. load
-
Packed brand
Packaged product

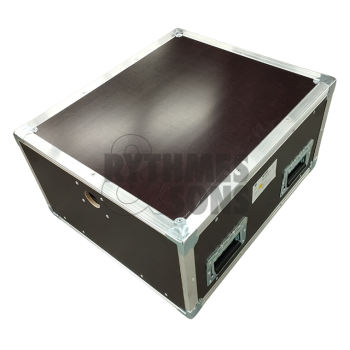

OPENROAD® 19" rack 6U depth 530mm
This rack takes advantage of the simple, ergonomic and original OPENROAD® system.
The 2 removable lids are easy to open and take up little space.
They can handle equipment with a 530mm maximum depth (including fixtures).
It is equipped in front and back with 19" steel rack strip, perforated with squares holes.
The M6 nuts may be positioned at the desired place on the rail. The front of your equipment is protected by a recessed position in the rack.
Product specifications and fittings
- Rack-mount configuration
- Front and back OpenRoad® removable flat lids
- 9 mm BROWN phenolic faced birch plywood
- 2 recessed sliding latches
- 4 recessed spring-loaded handles with double sprung
- wooden skate on the underside
Interior features
- Front and back 19" steel double rack strip rails
Default
- Scratch on panel
Developed and manufactured by Rythmes & Sons in France
